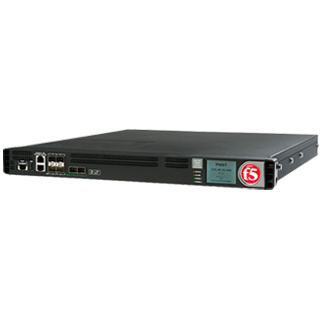

F5 BIG-IP i2600 i2800 Hardware Datasheet
| Specifications | i2600 | i2800 |
|---|---|---|
|
Intelligent Traffic Processing: |
L7 requests per second: 350K L4 connections per second: 125K L4 HTTP requests per second: 600K Maximum L4 concurrent connections: 14M Throughput: 10 Gbps L4/L7 |
L7 requests per second: 650K L4 connections per second: 250K L4 HTTP requests per second: 1M Maximum L4 concurrent connections: 14M Throughput: 10 Gbps L4/L7 |
| Hardware Offload SSL/TLS: |
ECC†: 2.1K TPS (ECDSA P-256) RSA: 2.5K TPS (2K Keys) 5 Gbps bulk encryption* |
ECC†: 3.5K TPS (ECDSA P-256) RSA: 4.3K TPS (2K Keys) 8 Gbps bulk encryption* |
| FIPS SSL: | N/A | N/A |
| Hardware Compression: | N/A | 5 Gbps |
| Hardware DDoS Protection: | N/A | N/A |
| TurboFlex™ Performance Profiles | N/A | Tier 1 |
| Software Compression: | 3 Gbps | N/A |
| Software Architecture: | 64-bit TMOS | 64-bit TMOS |
| On-Demand Upgradable: | Yes | N/A |
| Virtualization (Maximum Number of vCMP® Guests): | N/A | N/A |
| Processor: | One 2-Core Intel Xeon processor (total 4 hyperthreaded logical processor cores) | One 2-Core Intel Xeon processor (total 4 hyperthreaded logical processor cores) |
| Memory: | 16 GB DDR4 | 16 GB DDR4 |
| Hard Drive: | 1x 500 GB Enterprise Class HDD | 1x 500 GB Enterprise Class HDD |
| Gigabit Ethernet CU Ports: | Optional SFP | Optional SFP |
| Gigabit Fiber Ports (SFP): | 4 SX or LX (sold separately) | 4 SX or LX (sold separately) |
| 10 Gigabit Fiber Ports (SFP+): | 2 SR/LR (sold separately); optional 10G copper direct attach | 2 SR/LR (sold separately); optional 10G copper direct attach |
| 40 Gigabit Fiber Ports (QSFP+): | N/A | N/A |
| Power Supply: | 1x 250W Platinum AC PSU (Additional PSU optional, 2x 650W DC PSU optional) | 1x 250W Platinum AC PSU (Additional PSU optional, 2x 650W DC PSU optional) |
| Typical Consumption: | 95W (single power supply, 110V input)** | 95W (single power supply, 110V input)** |
| Input Voltage: | 100–240 VAC +/- 10% auto switching, 50/60hz | 100-240 VAC +/- 10% auto switching, 50/60hz |
| Typical Heat Output: | 325 BTU/hour (single power supply, 110V input)** | 325 BTU/hour (single power supply, 110V input)** |
| Dimensions: |
1.72” (4.37 cm) H x 17.4” (44.2 cm) W x 30.6” (77.72 cm) D 1U industry standard rack-mount chassis |
1.72″ (4.37 cm) H x 17.4″ (44.2 cm) W x 30.6″ (77.72 cm) D 1U industrial standard rack-mount chassis |
| Weight: | 20 lbs. (11.8 kg) (dual power supply) | 20 lbs. (11.8 kg) (dual power supply) |
| Operating Temperature: | 32° to 104° F (0° to 40° C) | 32° to 104° F (0° to 40° C) |
| Operational Relative Humidity: | 5 to 85% at 40º C | 5 to 85% at 40° C |
| Safety Agency Approval: |
ANSI/UL 60950-1-2014 CSA 60950-1-07, including A1:2011+A2:2014 IEC 60950-1:2005, A1:2009+A2:2013 EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
ANSI/UL 60950-1-2014 CSA 60950-1-07, including A1:2011+A2:2014 IEC 60950-1:2005, A1:2009+A2:2013 EN 60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 |
|
Certifications/ Susceptibility Standards: |
ETSI EN 300 386 V1.6.1 (2012) EN 55032:2012 Class A; EN 61000-3-2:2014 EN 61000-3-3:2013; EN 55024:2010 FCC Class A (Part 15), IC Class A, VCCI Class A |
ETSI EN 300 386 V1.6.1 (2012) EN 55032:2012 Class A; EN 61000-3-2:2014 EN 61000-3-3:2013; EN 55024:2010 FCC Class A (Part 15), IC Class A, VCCI Class A |
*Maximum throughput.
**Please refer to the Platform Guide: i2000 Series for the latest power ratings for your specific configurations (dual power supplies, highline input voltage, DC, etc.).
Notes: Performance-related numbers are based on local traffic management services only. Only optics provided by F5 are supported. SFP+ ports in i10800, i10600, i7800, i7600, i5800, and i5600
are compatible with F5 SFP modules.
† ECDHE-ECDSA-AES128-SHA256 cipher string tested.
